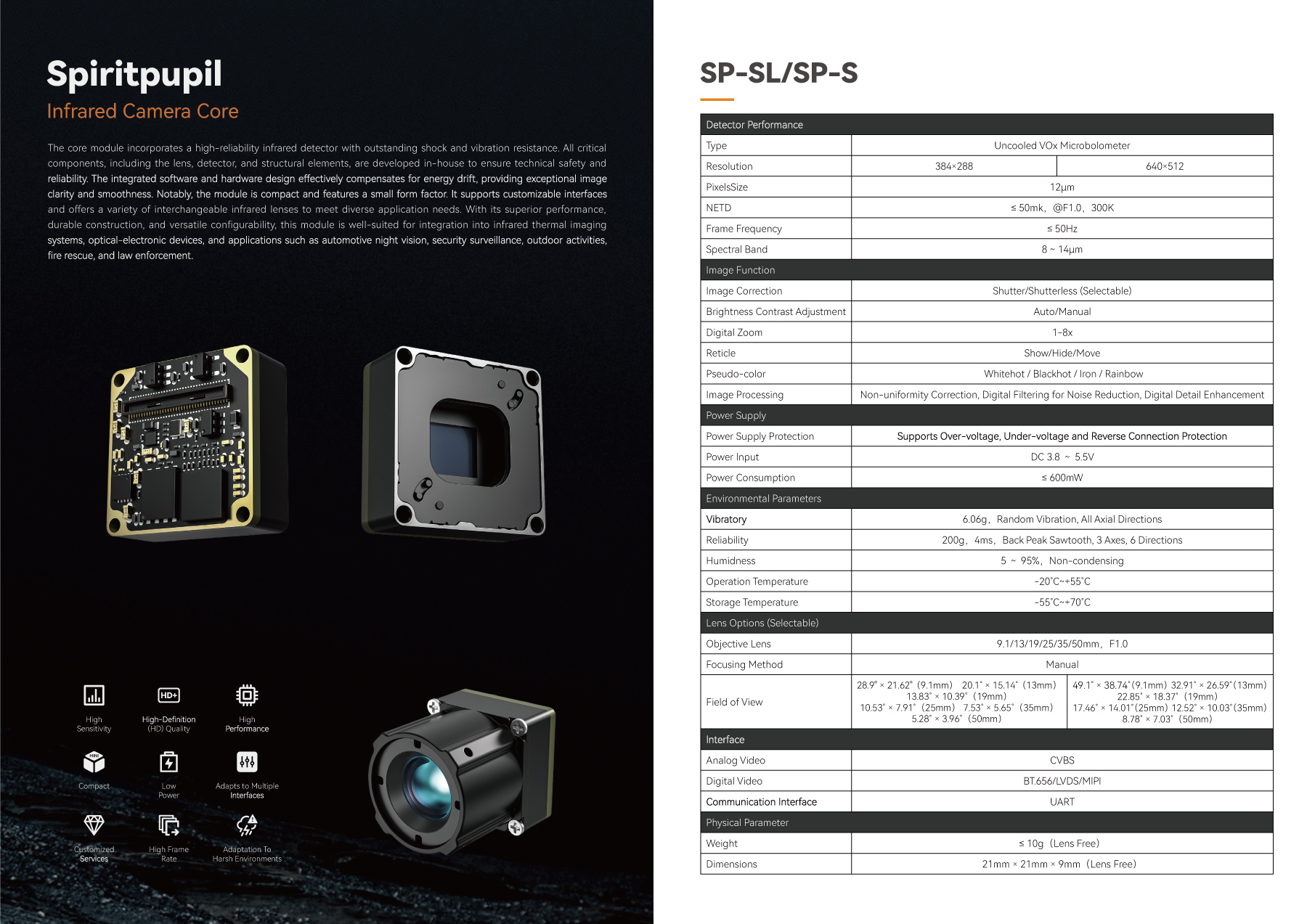

Spiritpupil-Serie

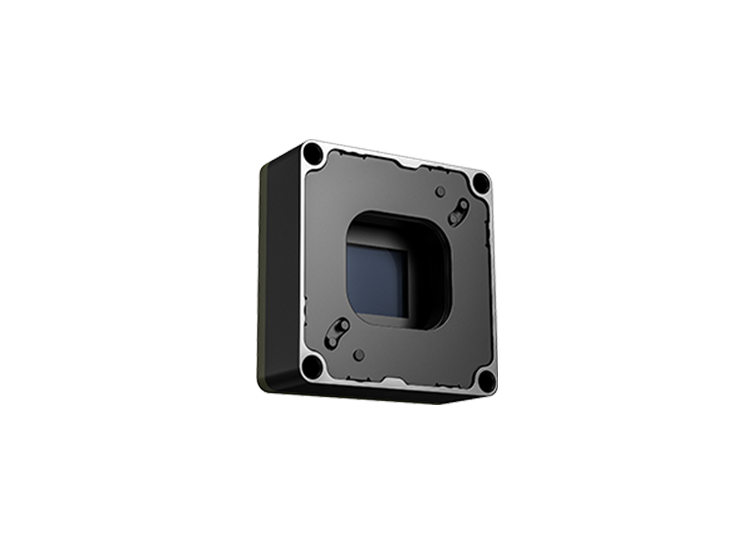

Ungekühlte Infrarot-Module
- Die Module der Spiritpupil-Serie vereinen eigenentwickelte Kernkomponenten wie Objektiv, Detektor und Gehäusestruktur. Die Module nutzen hochzuverlässige Infrarotdetektoren mit exzellenter Erschütterungs- und Stoßfestigkeit.
- Durch integriertes und synergetisches Hardware-Software-Design erfolgt eine effektive Kompensation von Energiedrift, wodurch eine optimale Bildschärfe und flüssige Bildqualität sichergestellt werden.
Einsatzbereiche
Assistenzsystemen für Fahren
Zustandsbasierte Wartung der Fahrzeuge
Prävention des Waldbrands
Frühwarnung der Brände
Detektion der Gefahrstoffe
Kombinationen der Dienstleistungen
Tierbeobachtung
Outdoor-Rettungseinsätze
Outdoor-Sport
Technische Spezifikationen
Thermal Module
Detector Type
Response Waveband
Resolution
Pixel Pitch
NETD
Frame Rate
Lens Optional
Focal Length
Field of View
Aperture
Focusing Method
Image Function
Image Correction
Image Processing
Brightness Contrast Adjustment
Digital Zoom
Reticle
Palettes
Power Supply
Power Supply Protection
Power Input
Power Consumption
Interface
Analog Video
Digital Video
Communication Interface
Physical Parameter
Vibratory
Shock Resistance
Humidness
Operation Temperature
Storage Temperature
Dimensions
Weight
Vox
8 ～ 14μm
384×288
12μm
≤ 50mk，@F1.0，300K
≤ 50Hz
9.1/13/19/25/35/50mm
9.1mm：28.9° X 21.62° 13mm： 20.1˚ X 15.14˚ 19mm：13.83˚ X 10.39˚ 25mm：10.53˚ X 7.91˚ 35mm：7.53˚ X 5.65˚ 50mm：5.28˚ X 3.96˚
F1.0
Manual
Shutter/Shutterless (Selectable)
Non-uniformity Correction, Digital Filtering for Noise Reduction, Digital Detail Enhancemen
Auto/Manual
1-8x
Show/Hide/Move
Whitehot / Blackhot / Iron / Rainbow
Supporrs Over-voltage, Under-voltage and Reverse Connection Protection
DC 3.8 ～ 5.5V
≤0.6W
CVBS
BT.656/LVDS/MIPI
UART
6.06g，Random Vibration, All Axial Directions
200g，4ms，Back Peak Sawtooth, 3 Axes, 6 Directions
5 ～ 95%，Non-condensing
-20˚C~+55˚C
-55˚C~+70˚C
21mm X 21mm X 9mm（Lens excluded）
≤10g（Lens excluded）
Vox
8 ～ 14μm
384×288
12μm
≤ 50mk，@F1.0，300K
≤ 50Hz
9.1/13/19/25/35/50mm
9.1mm：28.9° X 21.62° 13mm： 20.1˚ X 15.14˚ 19mm：13.83˚ X 10.39˚ 25mm：10.53˚ X 7.91˚ 35mm：7.53˚ X 5.65˚ 50mm：5.28˚ X 3.96˚
F1.0
Manual
Shutter/Shutterless (Selectable)
Non-uniformity Correction, Digital Filtering for Noise Reduction, Digital Detail Enhancemen
Auto/Manual
1-8x
Show/Hide/Move
Whitehot / Blackhot / Iron / Rainbow
Supporrs Over-voltage, Under-voltage and Reverse Connection Protection
DC 3.8 ～ 5.5V
≤0.6W
CVBS
BT.656/LVDS/MIPI
UART
6.06g，Random Vibration, All Axial Directions
200g，4ms，Back Peak Sawtooth, 3 Axes, 6 Directions
5 ～ 95%，Non-condensing
-20˚C~+55˚C
-55˚C~+70˚C
21mm X 21mm X 9mm（Lens excluded）
≤10g（Lens excluded）
Vox
8 ～ 14μm
640×512
12μm
≤ 50mk，@F1.0，300K
≤ 50Hz
9.1/13/19/25/35/50mm，F1.0
9.1mm：49.1˚ X 38.74˚ 13mm：32.91˚ X 26.59˚ 19mm：22.85˚ X 18.37˚ 25mm：17.46˚ X 14.01˚ 35mm：12.52˚ X 10.03˚ 50mm：8.78˚ X 7.03˚
F1.0
Manual
Shutter/Shutterless (Selectable)
Non-uniformity Correction, Digital Filtering for Noise Reduction, Digital Detail Enhancemen
Auto/Manual
1-8x
Show/Hide/Move
Whitehot / Blackhot / Iron / Rainbow
Supporrs Over-voltage, Under-voltage and Reverse Connection Protection
DC 3.8 ～ 5.5V
≤0.6W
CVBS
BT.656/LVDS/MIPI
UART
6.06g，Random Vibration, All Axial Directions
200g，4ms，Back Peak Sawtooth, 3 Axes, 6 Directions
5 ～ 95%，Non-condensing
-20˚C~+55˚C
-55˚C~+70˚C
21mm X 21mm X 9mm（Lens excluded）
≤10g（Lens excluded）
Vox
8 ～ 14μm
640×512
12μm
≤ 50mk，@F1.0，300K
≤ 50Hz
9.1/13/19/25/35/50mm，F1.0
9.1mm：49.1˚ X 38.74˚ 13mm：32.91˚ X 26.59˚ 19mm：22.85˚ X 18.37˚ 25mm：17.46˚ X 14.01˚ 35mm：12.52˚ X 10.03˚ 50mm：8.78˚ X 7.03˚
F1.0
Manual
Shutter/Shutterless (Selectable)
Non-uniformity Correction, Digital Filtering for Noise Reduction, Digital Detail Enhancemen
Auto/Manual
1-8x
Show/Hide/Move
Whitehot / Blackhot / Iron / Rainbow
Supporrs Over-voltage, Under-voltage and Reverse Connection Protection
DC 3.8 ～ 5.5V
≤0.6W
CVBS
BT.656/LVDS/MIPI
UART
6.06g，Random Vibration, All Axial Directions
200g，4ms，Back Peak Sawtooth, 3 Axes, 6 Directions
5 ～ 95%，Non-condensing
-20˚C~+55˚C
-55˚C~+70˚C
21mm X 21mm X 9mm（Lens excluded）
≤10g（Lens excluded）
